About These Td6 Diesel Cylinder Heads

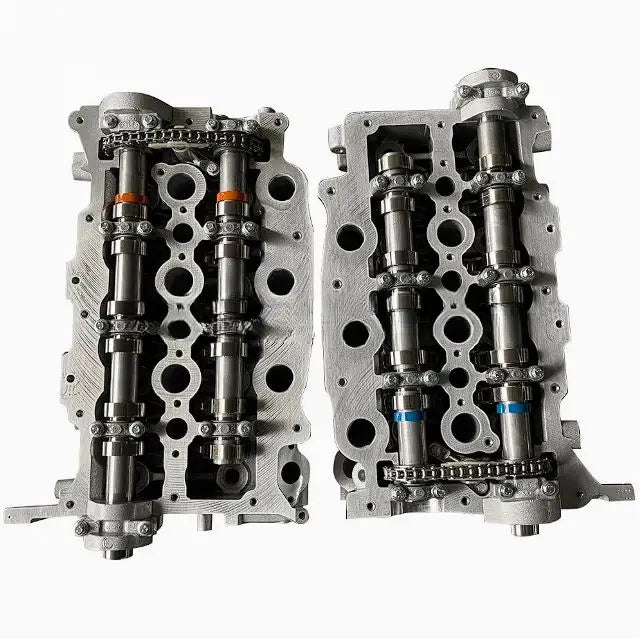

A remanufactured pair of left- and right-side cylinder heads for the Land Rover 3.0L Td6 turbocharged V6 diesel (306DT / AJD-V6), found in 2016–2021 Range Rover and Range Rover Sport and 2017–2020 Discovery diesel models. Both heads are fully assembled with valves, springs, camshafts, lifters, and rockers — ready to bolt on.
Left side: part number LR083672 (replaces C2D50972), casting ident 9X2Q6C032BC. Right side: part number LR014249 (replaces C2D3613), casting ident 9X2Q6C032AB. Aluminum DOHC construction with 16.1:1 compression. Fits the 3.0L Td6 diesel only — not compatible with gasoline V6/V8 engines or the earlier 2.7L TDV6.
The Td6 is prone to cylinder head damage after overheating events, often triggered by coolant crossover pipe failures or EGR-related issues. New OEM castings run well over $2,000 bare, before cams and valvetrain — these fully assembled heads get your engine back together for a fraction of dealer cost. Backed by a 1-year warranty. U.S. customers pay no core charge, but the old cores must be returned within 30 days or the warranty is void, A prepaid core return label is included with each box. International customers only need to pay a $200 core charge (non-refundable).
Build time: remanufactured heads typically ship in 10–15 business days. Call for current turnaround.
What's Included & Features
Every part is inspected before it leaves our facility.
Here's what you get with this listing:
-
Left & Right Cylinder Heads — one remanufactured aluminum left-side cylinder head and one remanufactured aluminum right-side cylinder head.
-
Left Part Number: LR083672 — supersedes C2D50972.
-
Right Part Number: LR014249 — supersedes C2D3613.
-
Casting Idents: 9X2Q6C032BC (Left) / 9X2Q6C032AB (Right) — compare these stamps against your original heads before ordering.
-
Fully Assembled — Ready to Bolt On — complete with valves, springs, intake and exhaust camshafts, hydraulic lifters, and rocker arms. Left: intake cam LR057781 / JDE36144, exhaust cam LR057792 / JDE36146. Right: intake cam LR057775 / JDE36143, exhaust cam LR057793 / JDE36145.
-
Precision Machining Process — hot-tank cleaned, pressure tested, and crack inspected (cracked cores are scrapped, never repaired). Deck PCD milled for reliable MLS head gasket sealing, new valve stem seals, guides and seats replaced as needed, multi-angle valve job on all 12 seats, and valve springs pressure tested to OEM spec.
-
Direct OEM Replacement — fits 2016–2021 Range Rover & Range Rover Sport and 2017–2020 Discovery with the 3.0L Td6 diesel (306DT). No modification required.
-
Td6 Diesel Only — does NOT fit gasoline V6/V8 engines or the earlier 2.7L TDV6 — those use different castings.
-
1-Year Warranty & Core Return — U.S. customers pay no core charge, but the old cores must be returned within 30 days or the warranty is void, A prepaid core return label is included with each box. International customers only need to pay a $200 core charge (non-refundable).
-
Remanufactured, Inspected & Vacuum Tested — vacuum tested to verify a perfect seal on every cylinder, with final assembly and quality inspection performed to AERA specifications.
Part Specifications
| Left Side Head | |
| Part # (Left) | LR083672 / 306-10028 |
| Replaces (Left) | C2D50972 |
| Casting Ident (Left) | 9X2Q6C032BC |
| Intake Camshaft # (Left) | LR057781 / JDE36144 |
| Exhaust Camshaft # (Left) | LR057792 / JDE36146 |
| Right Side Head | |
| Part # (Right) | LR014249 / 306-10027 |
| Replaces (Right) | C2D3613 |
| Casting Ident (Right) | 9X2Q6C032AB |
| Intake Camshaft # (Right) | LR057775 / JDE36143 |
| Exhaust Camshaft # (Right) | LR057793 / JDE36145 |
| Shared Specifications | |
| Part Type | Cylinder Heads — Fully Assembled (Pair) |
| Position | Left & Right |
| Material | Aluminum |
| Engine | 3.0L Td6 Turbo Diesel V6 (306DT / AJD-V6), DOHC 24-Valve, 16.1:1 Compression |
| Compatible Models | Land Rover Range Rover & Range Rover Sport 2016–2021, Discovery 2017–2020 |
| Warranty | 1-Year Warranty |
| Core Return | U.S.: no core charge — cores must be returned within 30 days (prepaid label included). International: $200 core charge (non-refundable). |
| Part Condition | Remanufactured — Inspected & Vacuum Tested |
Vehicle Fitment
| Year | Make | Model | Trim | Engine |
| Range Rover | ||||
| 2016–2021 | Land Rover | Range Rover | All Td6 Diesel Trims | 3.0L Td6 Diesel |
| Range Rover Sport | ||||
| 2016–2021 | Land Rover | Range Rover Sport | All Td6 Diesel Trims | 3.0L Td6 Diesel |
| Discovery | ||||
| 2017–2020 | Land Rover | Discovery | All Td6 Diesel Trims | 3.0L Td6 Diesel |
⚠ Always verify part numbers LR083672 (left, replaces C2D50972, casting ident 9X2Q6C032BC) and LR014249 (right, replaces C2D3613, casting ident 9X2Q6C032AB) match your original heads before purchasing. Gasoline and 2.7L TDV6 engines use different castings and are NOT compatible. Call us if unsure — (877) 443-9246.
