About This Diesel Wiring Harness
This is an OEM used/refurbished Diesel Wiring Harness for the 2016-2021 Land Rover Discovery, Range Rover, and Range Rover Sport equipped with the 3.0L Td6 V6 diesel engine. It carries the correct engine and body wiring routing for the Td6 diesel platform and is a direct fit replacement for a damaged, corroded, or failed original harness.
Part number LR118757, replaces LR109350. OEM engineering stamp FPLA-9H589-AE. Fits Discovery First Edition, HSE, HSE Luxury, and SE; Range Rover Base and HSE (including AWD); and Range Rover Sport HSE, SE, and HSE Silver Edition trims (4WD and AWD) across the applicable model years listed below.
What's Included & Features
Every part is inspected before it leaves our facility.
Here's what you get with this listing:
-

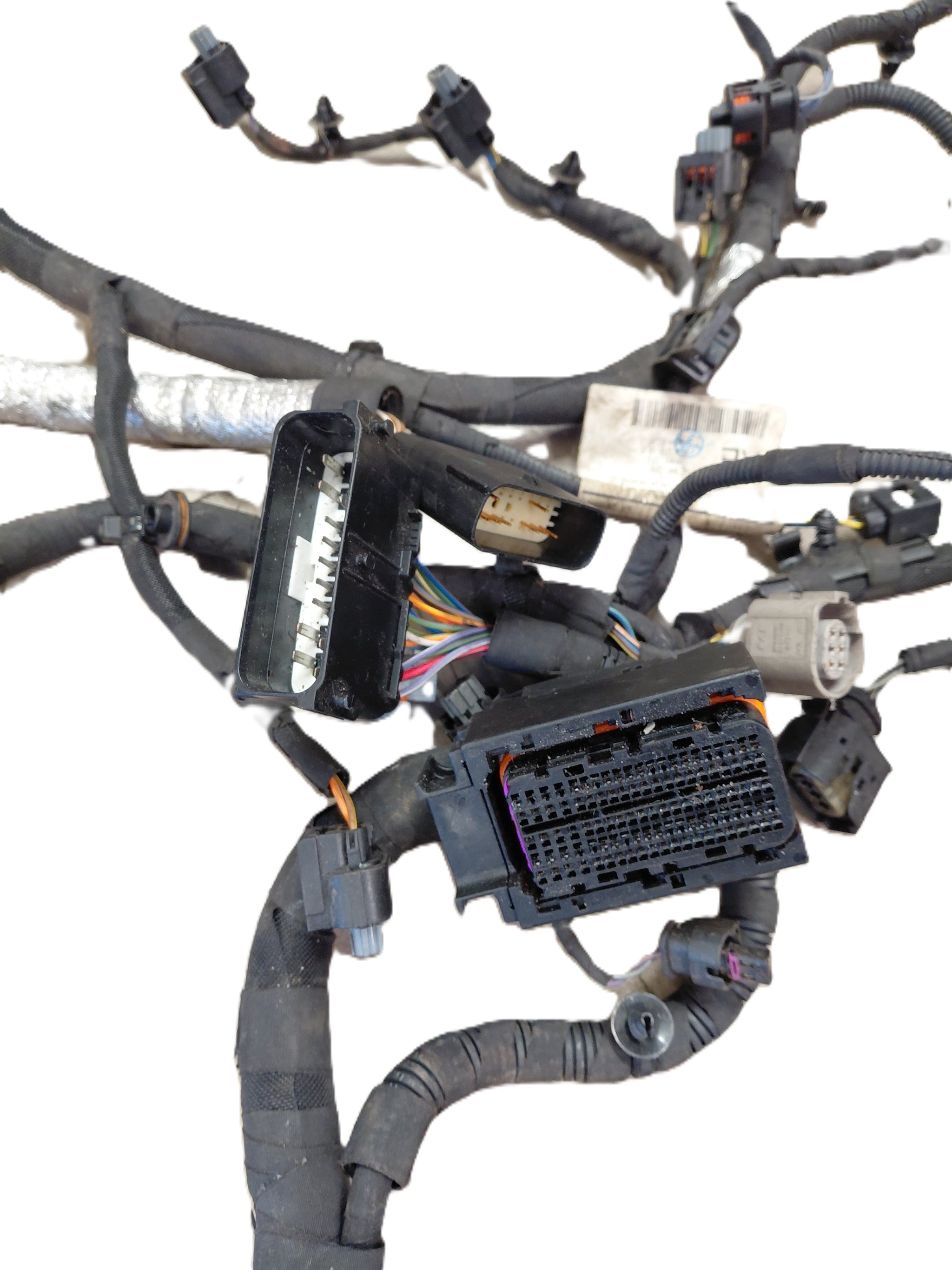

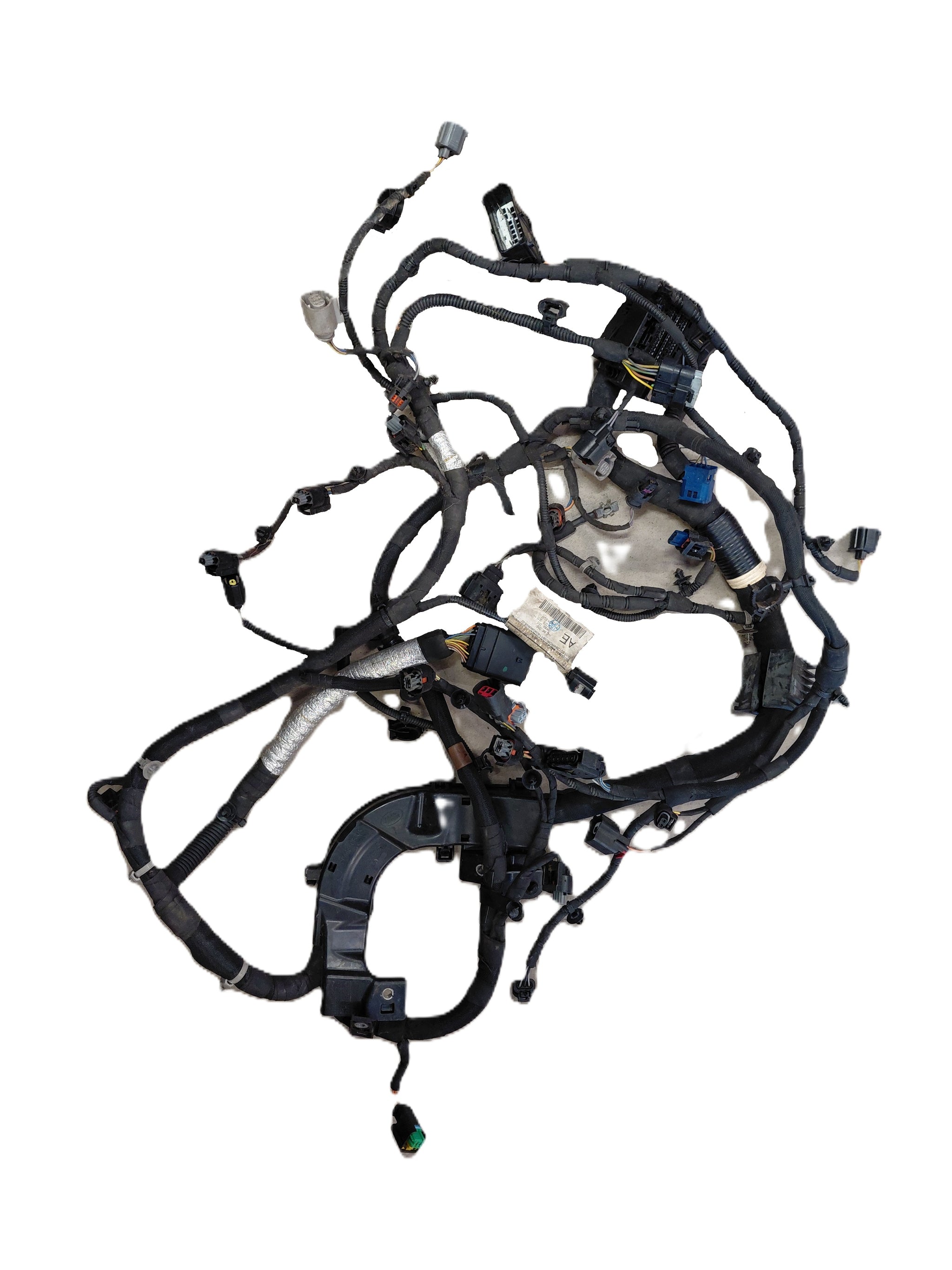

Diesel Wiring Harness — complete OEM harness assembly for the 3.0L Td6 V6 diesel powertrain.
-
Part Number: LR118757 — supersedes LR109350.
-

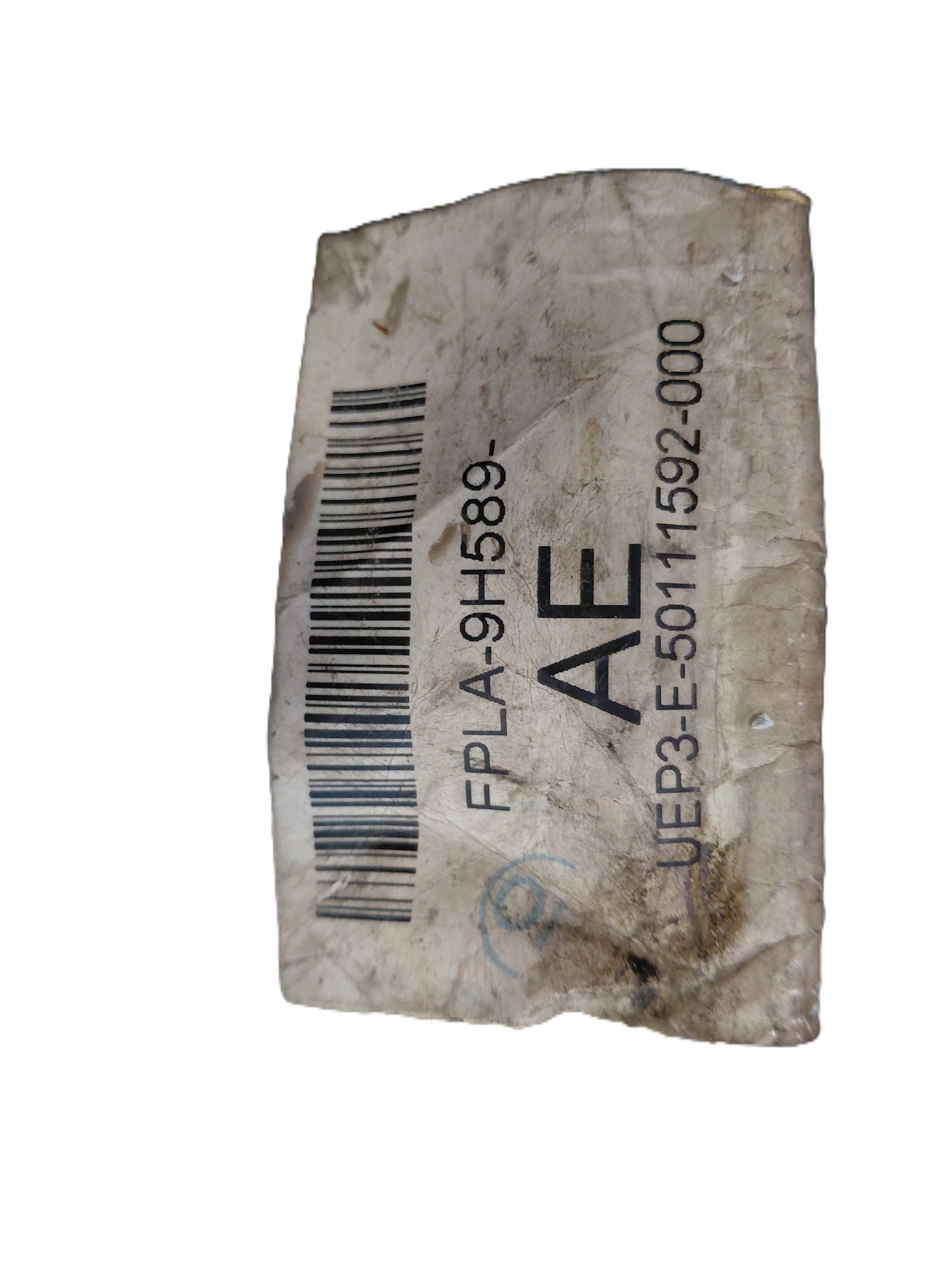

OEM Engineering Stamp: FPLA-9H589-AE — factory-cast reference number for cross-verification.
-
Broad Td6 Platform Coverage — one harness spans Discovery, Range Rover, and Range Rover Sport diesel models.
-
Direct OEM Replacement — connectors and routing match factory configuration. No modification required.
-
OEM Used & Inspected — pulled from a low-mileage donor vehicle and tested for continuity before listing.
Part Specifications
| Part # | LR118757 / N/A |
| Replaces | LR109350 |
| OEM Engineering Number | FPLA-9H589-AE |
| Part Type | Diesel Wiring Harness |
| Position | N/A |
| Material | OEM Wiring Harness Assembly |
| Compatible Models | Land Rover Discovery, Range Rover, Range Rover Sport 2016-2021 |
| Part Condition | OEM Used / Refurbished |
Vehicle Fitment
| Year | Make | Model | Trim | Engine |
| Discovery | ||||
| 2017 | Land Rover | Discovery | First Edition | 3.0L Td6 V6 DIESEL A/T |
| 2017–2020 | Land Rover | Discovery | HSE, HSE Luxury | 3.0L Td6 V6 DIESEL A/T |
| 2018–2020 | Land Rover | Discovery | SE | 3.0L Td6 V6 DIESEL A/T |
| Range Rover | ||||
| 2016–2019 | Land Rover | Range Rover | Base, HSE | 3.0L Td6 V6 DIESEL A/T |
| 2020 | Land Rover | Range Rover | Base (AWD) | 3.0L Td6 V6 DIESEL A/T |
| 2020–2021 | Land Rover | Range Rover | HSE (AWD) | 3.0L Td6 V6 DIESEL A/T |
| Range Rover Sport | ||||
| 2016–2017 | Land Rover | Range Rover Sport | HSE, SE | 3.0L Td6 V6 DIESEL A/T |
| 2018–2020 | Land Rover | Range Rover Sport | HSE (4WD), SE (4WD) | 3.0L Td6 V6 DIESEL A/T |
| 2020 | Land Rover | Range Rover Sport | HSE (AWD) | 3.0L Td6 V6 DIESEL A/T |
| 2021 | Land Rover | Range Rover Sport | HSE Silver Edition (4WD) | 3.0L Td6 V6 DIESEL A/T |
| 2021 | Land Rover | Range Rover Sport | HSE Silver Edition (AWD) | 3.0L Td6 V6 DIESEL A/T |
⚠ Always verify part number LR118757 matches your original unit before purchasing. Call us if unsure — (877) 443-9246.
