2010–2013 Land Rover 5.0L V8 Left Cylinder Head

About This Left Cylinder Head

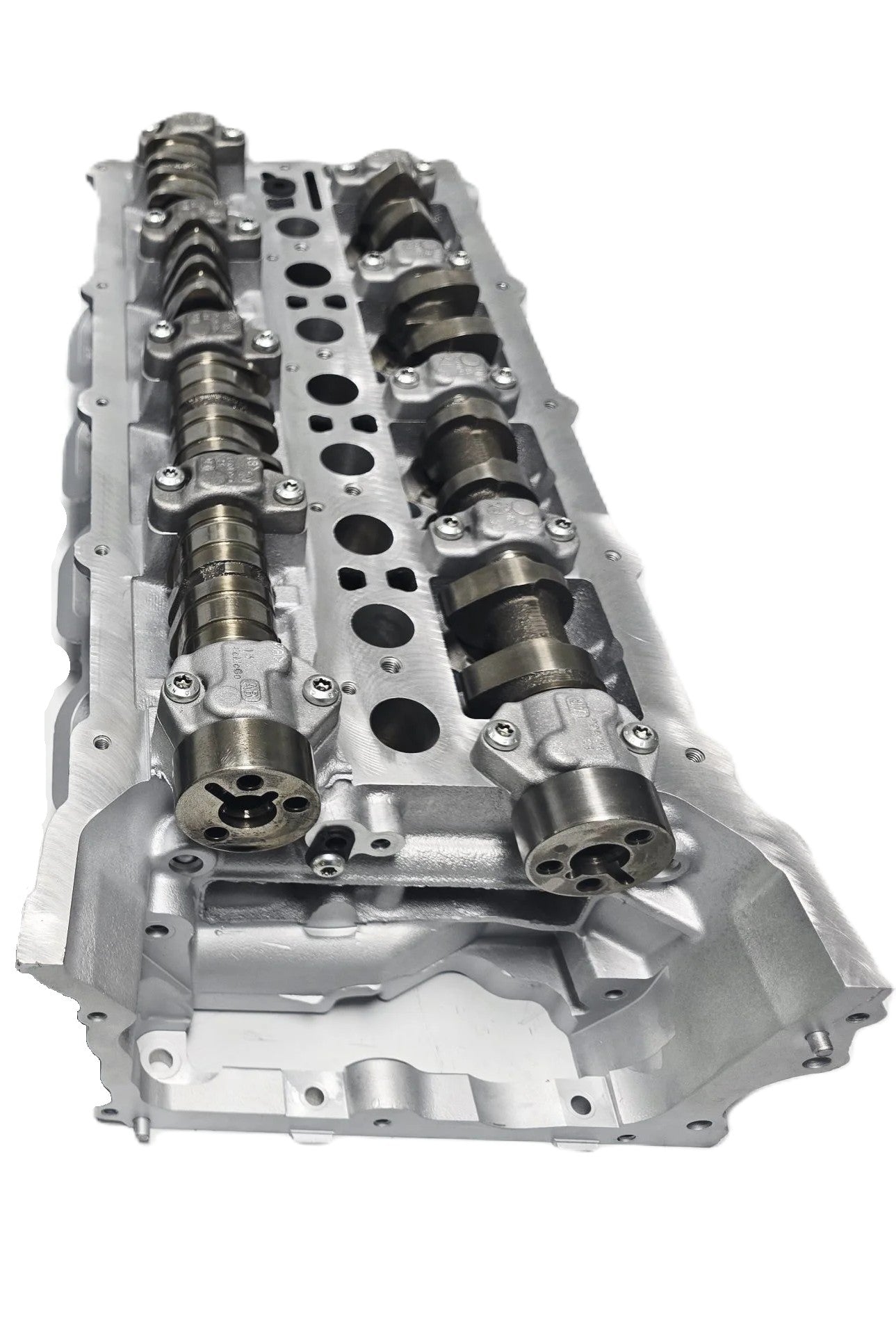

A remanufactured cast aluminum left-hand (driver side) cylinder head for the Land Rover 5.0L naturally aspirated (non-supercharged) V8, fitting the 2010–2013 LR4, Range Rover and Range Rover Sport. Machined to restore full compression and factory top-end performance on the left cylinder bank.

Head part number LR082797, replaces LR026146, LR011269, LR038753. The head arrives fully assembled with valves, springs and retainers installed, camshafts installed, and bucket lifters installed and lashed to specification, significantly reducing installation time. It is thermally cleaned, soda blasted, pressure tested, resurfaced and given a multi-angle valve job to meet or exceed OE dimensional tolerances. Camshaft part numbers vary by VIN — see Part Specifications for the breakdown.

Backed by a 1-year warranty. U.S. customers pay no core charge, but the old cores must be returned within 30 days or the warranty is void. A prepaid core return label is included with each box. International customers only need to pay a $200 core charge (non-refundable).

Build time: remanufactured heads typically ship in 10–15 business days. Call for current turnaround.

What's Included & Features

Every part is inspected before it leaves our facility.
Here's what you get with this listing:

• ✓
  Left Side — Left-Hand (Driver Side) — fits the left cylinder bank of the 5.0L V8 non-supercharged engine.
• ✓
  Part Number: LR082797 — supersedes LR026146, LR011269, LR038753. Camshafts: exhaust LR010744 / LR020616, intake LR010740 / LR020619, split at VIN AA314399 / AA314400.
• ✓
  Fully Assembled — includes camshafts, rocker arms / followers, hydraulic lash adjusters, and valves, springs & retainers — bucket lifters installed and lashed to spec.
• ✓
  In-House Machining — fully disassembled and thermally cleaned, soda blasted with sodium bicarbonate (water-soluble — zero risk of media clogging oil passages), and resurfaced on a Rottler S85A for a precision gasket-sealing surface.
• ✓
  Direct OEM Replacement — fits 2010–2013 Land Rover LR4, Range Rover and Range Rover Sport with the 5.0L V8 non-supercharged engine. No modification required.
• ✓
  OEM Remanufactured — Fully Inspected & Tested — pressure tested to 60 PSI for cracks and porosity, multi-angle valve job, and every port vacuum tested to confirm 100% airtight valve seating.
• ✓
  1-Year Warranty & Core Return — Backed by a 1-year warranty. U.S. customers pay no core charge, but the old cores must be returned within 30 days or the warranty is void. A prepaid core return label is included with each box. International customers only need to pay a $200 core charge (non-refundable).

Part Specifications

Vehicle Fitment

⚠ Fits 2010–2013 LR4, Range Rover & Range Rover Sport with the 5.0L V8 non-supercharged engine only — not for supercharged models. Always verify part number LR082797 (replaces LR026146, LR011269, LR038753) matches your original left head before purchasing. Call us if unsure — (877) 443-9246.
