2010–2013 Land Rover 5.0L V8 Cylinder Head Pair

About This Cylinder Head Pair

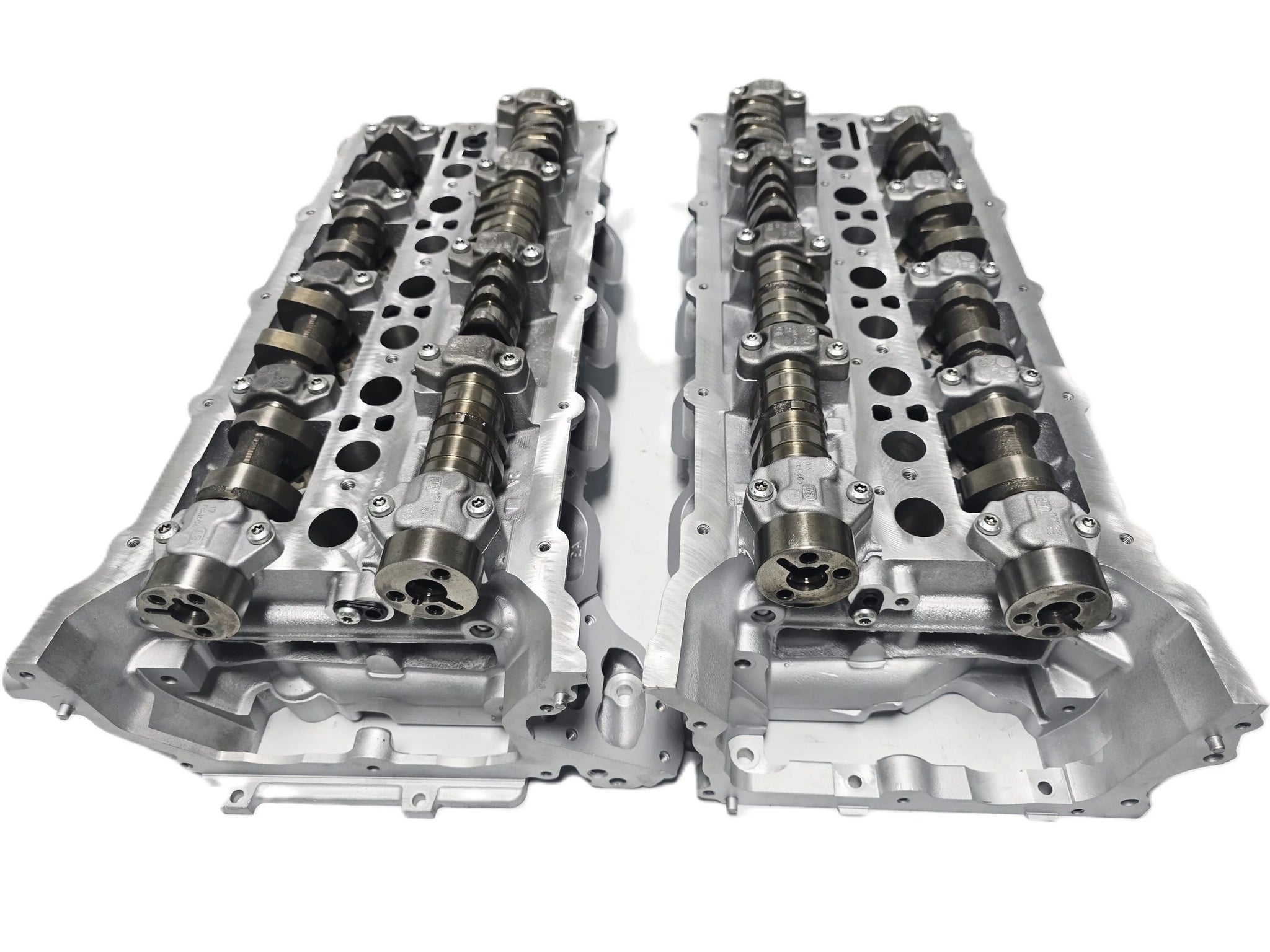

A professionally matched pair of remanufactured cast aluminum cylinder heads for the Land Rover 5.0L naturally aspirated (non-supercharged) V8, fitting the 2010–2013 LR4, Range Rover and Range Rover Sport. The set includes both the left-hand (driver side) and right-hand (passenger side) castings, machined as a balanced pair for uniform compression and matched top-end performance across both cylinder banks — the complete solution for a full top-end overhaul.

Head part numbers: LR038752 (right side), replaces LR026145, LR011268; and LR082797 (left side), replaces LR026146, LR011269, LR038753. Each head arrives fully assembled with valves, springs and retainers installed, camshafts installed, and bucket lifters installed and lashed to specification, significantly reducing installation time. Every unit is thermally cleaned, soda blasted, pressure tested, resurfaced and given a multi-angle valve job to meet or exceed OE dimensional tolerances. Camshaft part numbers vary by VIN — see Part Specifications for the full breakdown.

Backed by a 1-year warranty. U.S. customers pay no core charge, but the old cores must be returned within 30 days or the warranty is void. A prepaid core return label is included with each box. International customers only need to pay a $200 core charge (non-refundable).

Build time: remanufactured heads typically ship in 10–15 business days. Call for current turnaround.

What's Included & Features

Every part is inspected before it leaves our facility.
Here's what you get with this listing:

• ✓
  Complete Left & Right Pair — both LH (driver side) and RH (passenger side) heads, machined as a balanced pair for uniform compression across both banks.
• ✓
  Part Numbers: LR038752 (Right) / LR082797 (Left) — cylinder heads. Right supersedes LR026145, LR011268; Left supersedes LR026146, LR011269, LR038753. Camshafts: LR010742 / LR020615 / LR010738 / LR020618 (Right) and LR010744 / LR020616 / LR010740 / LR020619 (Left), split at VIN AA314399 / AA314400.
• ✓
  Fully Assembled — each head includes camshaft(s), rocker arms / followers, hydraulic lash adjusters, and valves, springs & retainers — bucket lifters installed and lashed to spec.
• ✓
  In-House Machining — fully disassembled and thermally cleaned, soda blasted with sodium bicarbonate (water-soluble — zero risk of media clogging oil passages), and resurfaced on a Rottler S85A for a precision gasket-sealing surface.
• ✓
  Direct OEM Replacement — fits 2010–2013 Land Rover LR4, Range Rover and Range Rover Sport with the 5.0L V8 non-supercharged engine. No modification required.
• ✓
  OEM Remanufactured — Fully Inspected & Tested — pressure tested to 60 PSI for cracks and porosity, multi-angle valve job, and every port vacuum tested to confirm 100% airtight valve seating.
• ✓
  1-Year Warranty & Core Return — Backed by a 1-year warranty. U.S. customers pay no core charge, but the old cores must be returned within 30 days or the warranty is void. A prepaid core return label is included with each box. International customers only need to pay a $200 core charge (non-refundable).

Part Specifications

Vehicle Fitment

⚠ Fits 2010–2013 LR4, Range Rover & Range Rover Sport with the 5.0L V8 non-supercharged engine only — not for supercharged models. Always verify part numbers LR038752 / LR082797 (replaces LR026145, LR011268 / LR026146, LR011269, LR038753) match your original heads before purchasing. Call us if unsure — (877) 443-9246.
